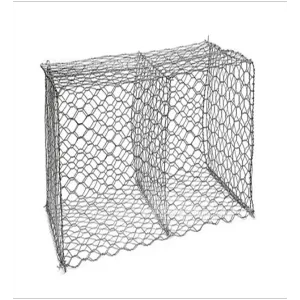

Gabion Mesh (also known as Gabion Basket, Gabion Box, Wire Mesh Cage, or Gabion Retaining Basket)

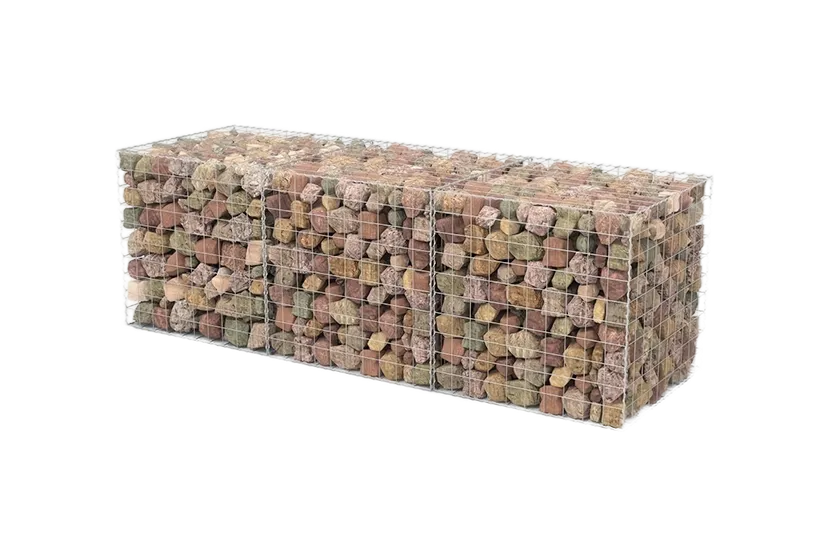

Finished Gabion Basket

1. What Is the Product?

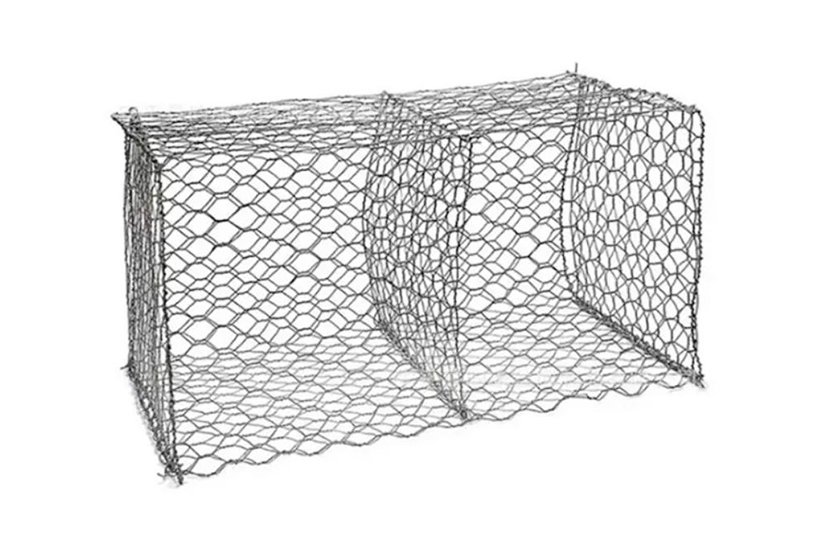

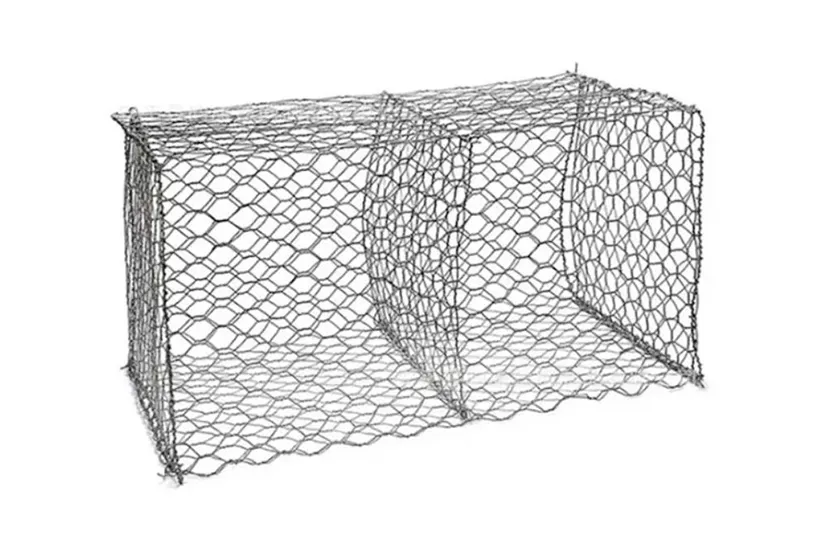

A gabion mesh is a box-shaped structural component made of hexagonal double-twisted metal wire mesh. The main raw materials are galvanized Steel Wire and zinc-aluminum alloy Coated Steel Wire. During installation, the gabion basket is filled with crushed stones or natural rocks on-site to form a complete protective structure.

As a flexible geotechnical protection material, gabion mesh uses mechanically double-twisted weaving technology to produce mesh panels with excellent tensile strength and structural stability, preventing the structure from loosening or collapsing under external forces.

2. Core Functions

1. Anti-erosion, Flood Control, and Soil Stabilization

The self-weight of the filled stones helps resist water impact and reduces the erosion force caused by river currents and waves. Gabion structures effectively prevent riverbanks and soil foundations from being washed away or collapsing, helping control water flow during flood seasons and reducing the risk of embankment failure.

2. Flexible Adaptation to Settlement and Deformation

Unlike rigid concrete slope protection structures that may crack when ground settlement or soil movement occurs, gabion mesh structures have certain flexibility and can adapt to minor deformation through the movement of internal stones and mesh expansion.

This makes them suitable for areas with weak foundations, uneven settlement, or complex geological conditions.

3. Permeability and Eco-Friendly Performance

The open mesh structure allows natural water circulation, enabling groundwater exchange and maintaining ecological connectivity. The gaps between stones provide habitats for plants, fish, and aquatic insects.

Compared with traditional concrete protection systems that block water-land interaction, gabion structures support ecological river restoration while providing effective protection.

4. Impact Resistance and Disaster Protection

Gabion structures can withstand impacts from falling rocks, debris flows, and mountain landslides. By dispersing impact loads through the stone-filled structure, they help reduce damage caused by geological disasters and improve slope stability.

5. Long Service Life and Durability

The galvanized coating or zinc-aluminum alloy coating provides effective corrosion resistance by isolating the steel wire from moisture and environmental factors. Under normal outdoor conditions, gabion structures can provide reliable service for decades.

3. Main Application Areas

1. Hydraulic and River Engineering (Most Common Application)

Gabion mesh is widely used in:

• Riverbank slope protection

• Riverbed erosion control

• Embankment reinforcement

• Flood control and diversion structures

• River footing protection

• Reservoir energy dissipation structures

• Ecological river restoration projects

It can replace traditional masonry stone structures and provide a more flexible and environmentally friendly solution for water conservancy projects.

2. Slope Stabilization and Geological Disaster Control

Applications include:

• Road and railway slope reinforcement in mountainous areas

• Landslide prevention sections

• Debris flow barrier dams

• Mine slope protection and ecological restoration

• Mountain flood channel regulation

• Sediment and debris retaining structures

Gabion systems provide stable support while allowing vegetation growth for long-term ecological recovery.

3. Municipal and Landscape Engineering

Common applications include:

• Landscape retaining walls in parks

• Waterfront landscape structures

• Residential water feature embankments

• Urban drainage channels and rainwater ditches

• Riverside ecological parks

• Green embankment projects

After vegetation grows through the stone gaps, gabion structures can naturally integrate into the surrounding environment and create an attractive ecological landscape.

4. Infrastructure Protection Projects

Gabion mesh is also applied in:

• Bridge pier scour protection

• Tunnel entrance slope reinforcement

• Coastal erosion and wave protection

• Temporary cofferdam and water retaining structures

• Shoreline protection projects

Additional Advantages

Easy Installation and Low Construction Requirements

Gabion baskets can be assembled directly on-site without requiring large construction equipment. The simple installation process helps reduce labor and construction costs.

Easy Maintenance and Repair

If local mesh damage occurs, only the damaged section needs to be repaired or replaced. There is no need to remove the entire structure, reducing maintenance costs and downtime.

Cost-Effective Filling Materials

The stone filling materials can often be sourced locally, such as river stones or crushed rocks, helping reduce transportation costs and overall project expenses.
